iKX1 CNC Milling Center
•4 tools ATC
•Transparent enclosure
•PC-Based CNC system,high reliability
•Pre-installed 4axis fast interface
•Pre-installed hand wheel controller fast interface
•Best for small production and education training
TABLE |
Table size |
400×145mm |
T slot (amount×width×distance) |
3×12mm×40mm |
|
Max. load |
20kg |
|
TRAVEL |
X travel |
260mm |
Y travel |
152mm |
|
Z travel |
180mm |
|
Spindle nose to table |
60-240mm |
|
Spindle center to column |
200mm |
|

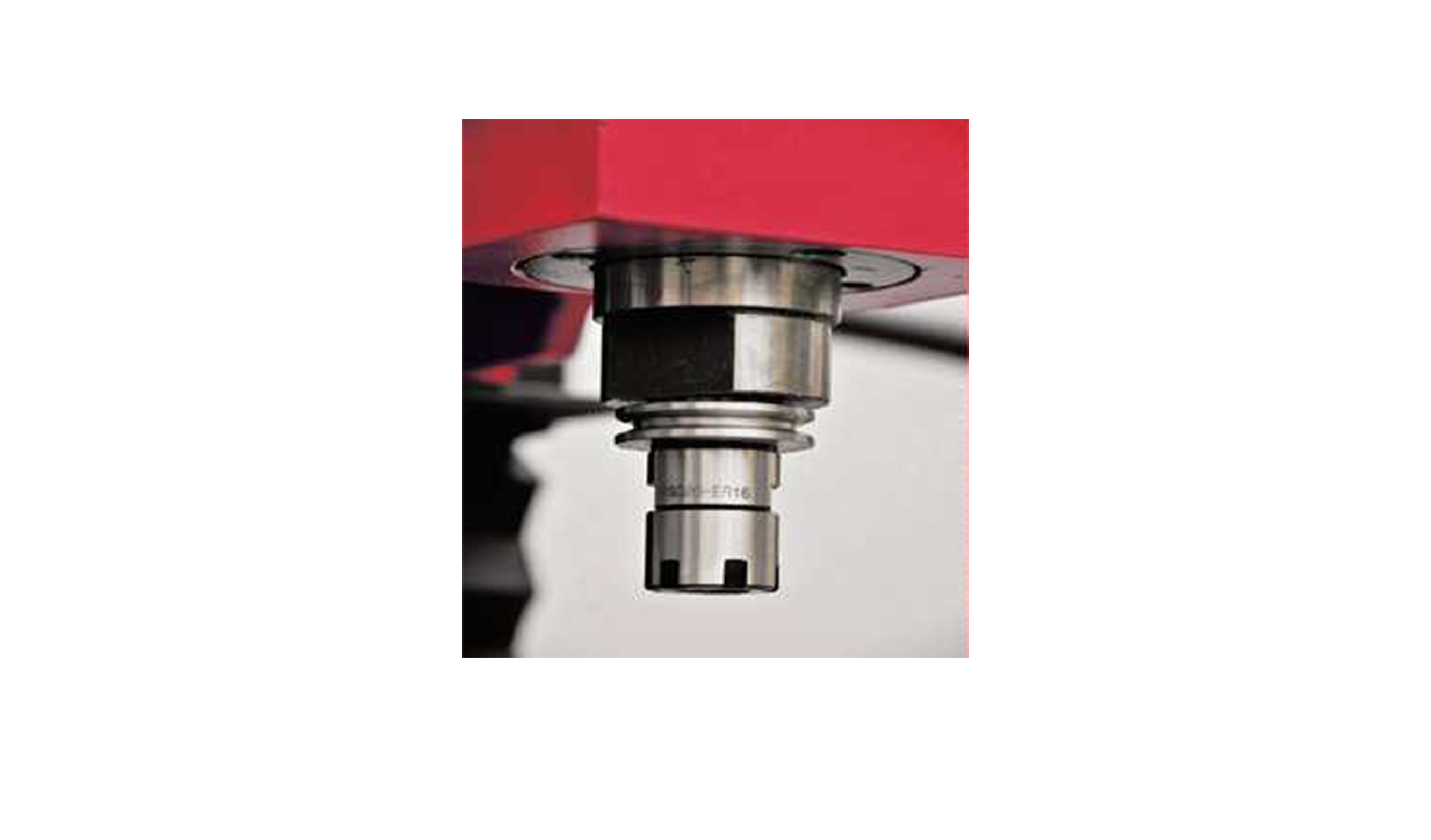

SPINDLE |
Spindle taper |
ISO20 |
Spindle motor |
1000w |
|
Spindle speed |
5000r/min |
|
FEED |
The max moving speed |
2000mm/min |
The max feeding speed |
500mm/min |
|
Power of X/Y |
1.35Nm |
|
Power of Z |
2.2Nm |
|
TOOL |
Tool number |
4 |
Max.tool diameter |
10mm |
|
Max.tool length |
110mm |
|
Max.tool weight |
0.5kg |
|
Time of tool changing |
10s |
|
ACCURACY |
Positioning accuracy |
0.015mm |
Repeatability accuracy |
0.01mm |
|
OTHERS |
Pneumatic supply |
0.6 MPa |
Power |
230V/120V |
|
Weight(NW/GW) |
280/340kg |
|
Overall dimension |
1040×860×940mm |
|
Packing size |
1170×960×1100mm |
