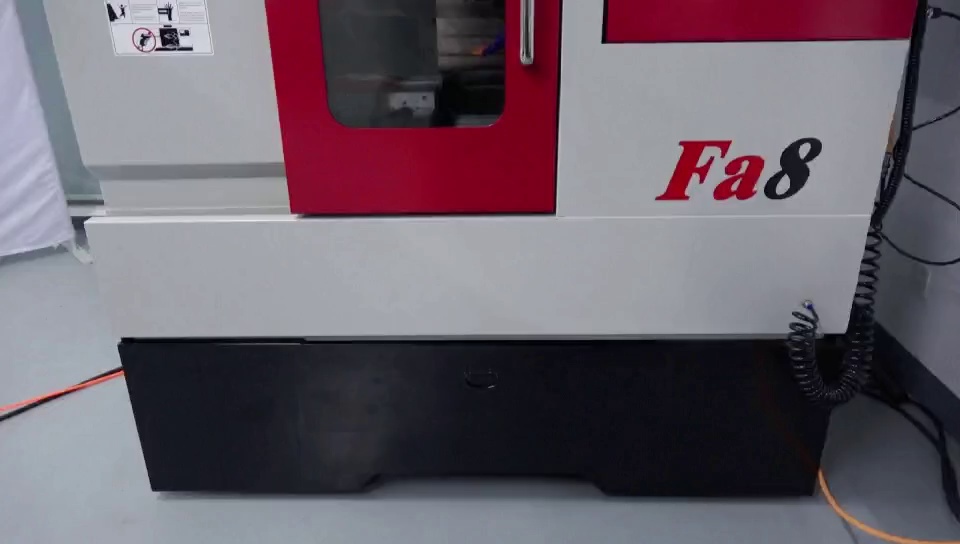

Fa8(iKX5) CNC Milling Center

Email: sales@siegind.com

Tel: +86-21-39528001

Whatsapp: 8613611994720

Fa8(iKX5) CNC Milling Center

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Features

•Adopting a vertical bed strcture;
•Adopting servo spindle motor, power 2.2kw;
•Adopting double nut preloading C3 grade ball screw;
•Equipped with a 12 station tool magazine, tool changing is accurate and reliable;
•Multiple CNC systems such as Siemens, FANUC, Guangshu, and Huazhong can be optionally equipped.

Specifications

Table	Table size	600*240 mm
	T slot (amount x width x distance)	16380 mm
	Max load	200 kg
Travel	X travel	350 mm
	Y travel	240 mm
	Z travel	400 mm
	Spindle nose to table	100-420 mm
Spindle	Spindle taper	BT30
	Spindle motor	2.2 kw
	Spindle speed	6000 rpm
Feed (Servo)	Rapid feed	10
	Power of X/Y	1 kw
	Power of Z	1.75 kw
Tool changer	Tool number	12
	Max. tool diameter	60/140 mm
	Max. tool length	200 mm
	Max. tool weight	5 kg
	Time of tool changing	8 s
Accuracy	Positioning accuracy	±0.01 mm
Accuracy	Repeatability accuracy	±0.01 mm
Others	Pneumatic supply	0.6 MP
	Power	380 V
	Weight (NW/GW)	1500/1700 kg
	Overall dimension	175013502200 mm
	Packaging size	195015502470 mm
