iKC8 CNC Turning Machine
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Features
•Integrated casting bed body;
•A2-5 spindle structure and 4kw spindle motor;
•The X/Z axis adopts high-precision linear guide and ball screw;
•8 station electric tool magazine;
•35°inclined bed;

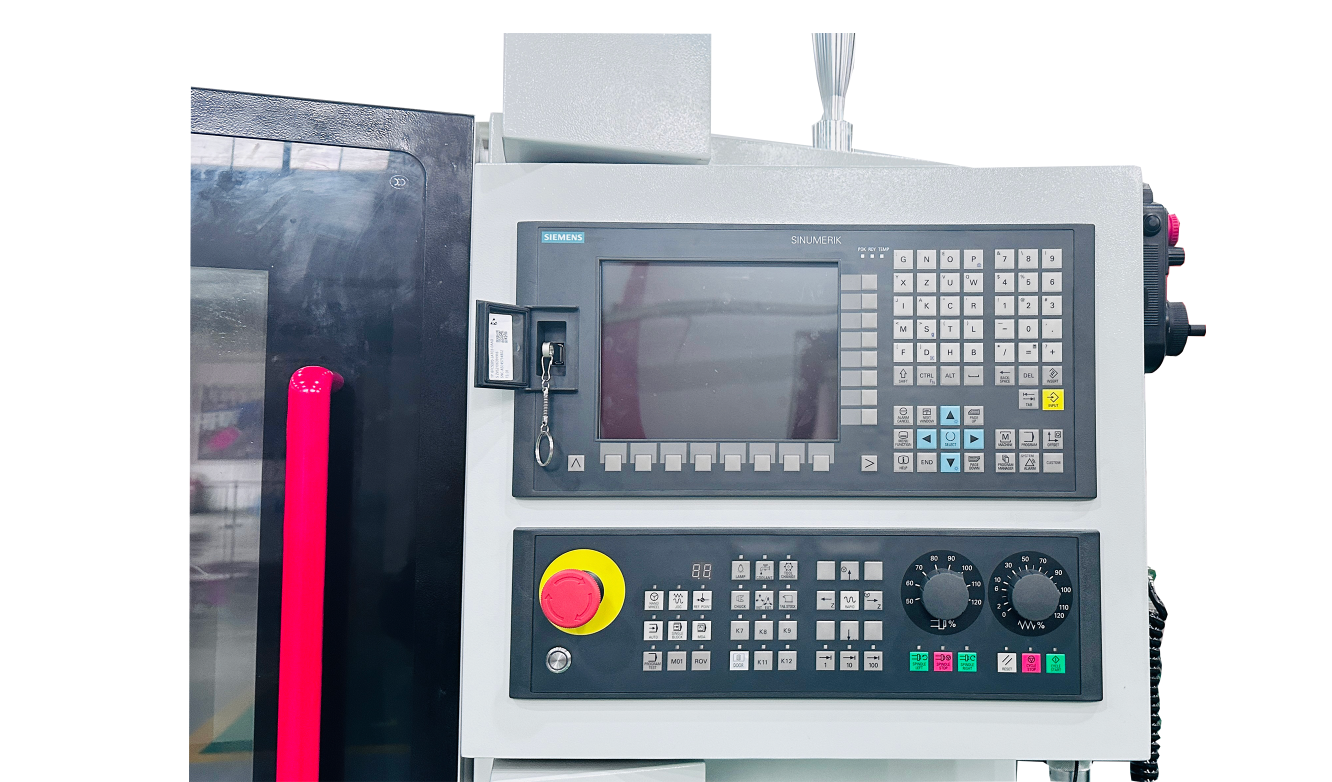

•Multiple CNC systems such as Siemens, FANUC, GSK, and HNC can be optionally equipped.
Specifications
| WORKING AREA | Turning diameter over bed(max) | 350mm | |
| travel across slide | 100mm | ||
| SPINDLE | Chuck diameter | 160mm | |
| Spindle speed | 50-3000r/min | ||
| Spindle through-hole | 48mm | ||
| Spindle mount | A2-5 | ||
| Spindle motor power | 4000W | ||
| FEED | X travel | 180mm | |
| Z travel | 215mm (collect 315mm) | ||
| The max moving speed | 10m/min | ||
| Power of motor | 1000 W | ||
| TOOL REST | Tool position | 8 | |
| Tool dimension 4 external | 16x16 mm | ||
| 2 end face | 16x16 mm | ||
| 2 boring | φ20mm | ||
| ACCURACY | Positioning accuracy | ±0.010 mm | |
| Repeatability accuracy | ±0.005 mm | ||
| OTHERS | Power | 380V | |
| Weight（NW/GW） | 1300kg/ 1500 kg | ||
| Overall dimension | 1700*1450*1850mm | ||
| Packing size | 1900*1650*2200mm | ||
