De2-Ultra Mini CNC Turning Center
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Features
•Three modes are available for selection, De2, De2-Pro, De2-Ultra
•Slant bed with 4 station ATC
•3-jaw chuck and collets included as standard

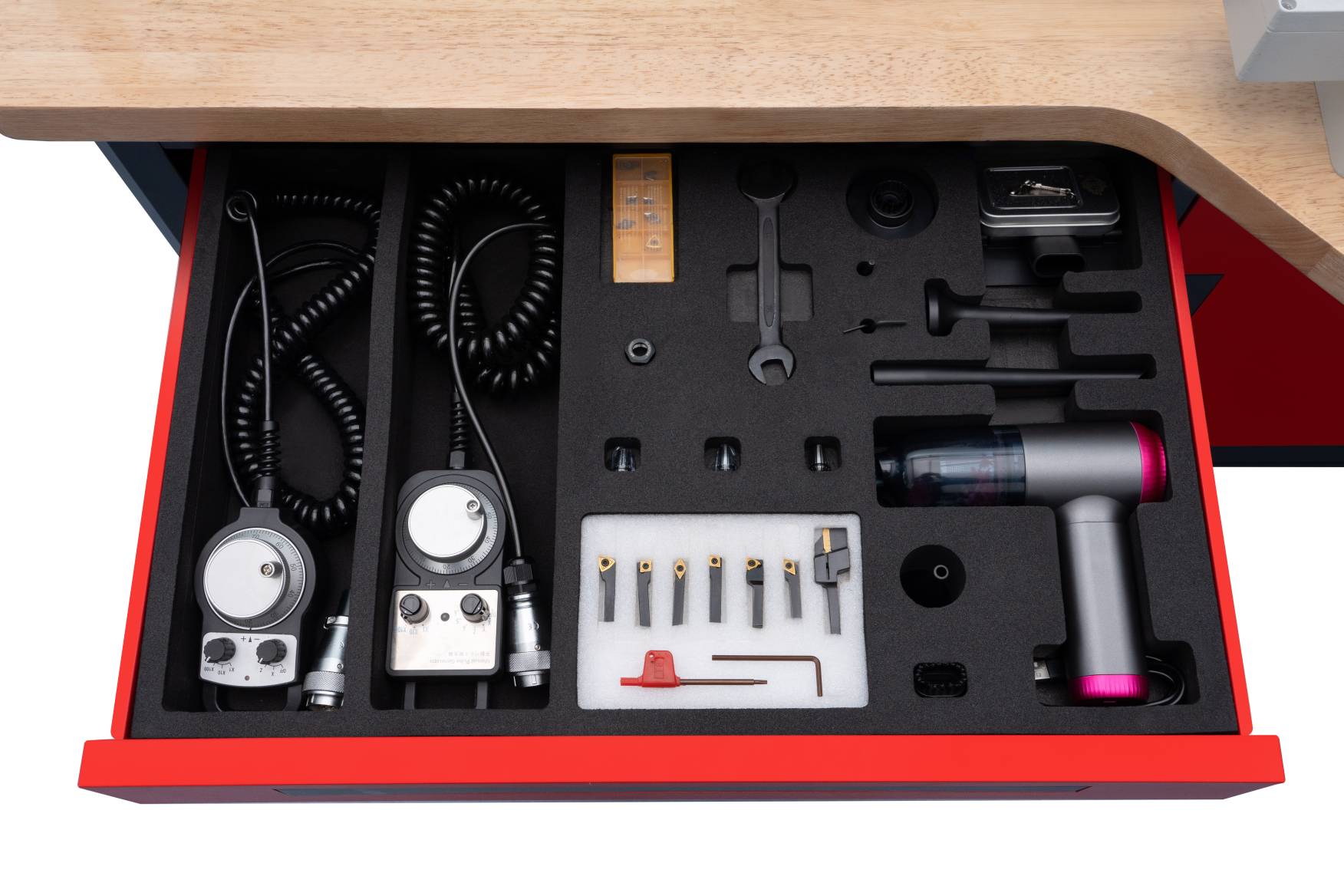

•Well-organized accessories
Specifications
| Working area | Turning diameter over bed (max) | 120 mm |
| Travel across slide | 60 mm | |
| Spindle | Chuck diameter | 50 mm |
| Spindle speed | 3000 r/min | |
| Spindle through-hole | φ8 mm | |
| Spindle mount | ER11 | |
| Spindle motor power | 250 mm | |
| Feed | X travel | 115 mm |
| Z travel | 210 mm | |
| The max moving speed | 2 m/min | |
| X motor | 0.6 Nm | |
| Z motor | 1.3 Nm | |
| Tool rest | Tool position | 4 mm |
| Tool dimension 4 external | 6*6 mm | |
| Accuracy | Positioning accuracy | 0.02 mm |
| Repeatability accuracy | 0.01 mm | |
| Others | Power | 1 kva |
| Weight | 145 kg | |
| Overall dimension | 1600*950*1220 mm | |
| Packing size | 1760*1000*1350 mm |
